輸出形式 |
埋入式 |
非埋入式 |
||
| 直流(DC) |
NPN |
NO | XGLW18-5N1-180 |
XGLW18M-8N1-180 |
|
NC |
XGLW18-5N2-180 |
XGLW18M-8N2-180 | ||
|
NO+NC |
XGLW18-5N4-180 |
XGLW18M-8N4-180 |
||
| PNP |
NO |
XGLW18-5P1-180 |
XGLW18M-8P1-180 | |
|
NC |
XGLW18-5P2-180 |
XGLW18M-8P2-180 | ||
|
NO+NC |
XGLW18-5P4-180 |
XGLW18M-8P4-180 |
||
|
DC二線 |
NO |
XGLW18-5D1-180 | XGLW18M-8D1-180 | |
|
NC |
XGLW18-5D2-180 | XGLW18M-8D2-180 | ||
|
交流(AC) |
AC二線 |
NO |
XGLW18-5A1-180 | XGLW18M-8A1-180 |
|
NC |
XGLW18-5A2-180 | XGLW18M-8A2-180 | ||
|
AC三線 |
NO+NC |
- |
- |
|
|
檢測距離 |
5mm±10% |
8mm±10% |
||
|
設定距離 |
0-4mm |
0-7mm |
||
|
響應頻率 |
(N.P型):0.6kHz;(D型):0.5kHz;(A型):25Hz |
(N.P型):0.2kHz;(D型):0.4kHz;(A型):25Hz |
||

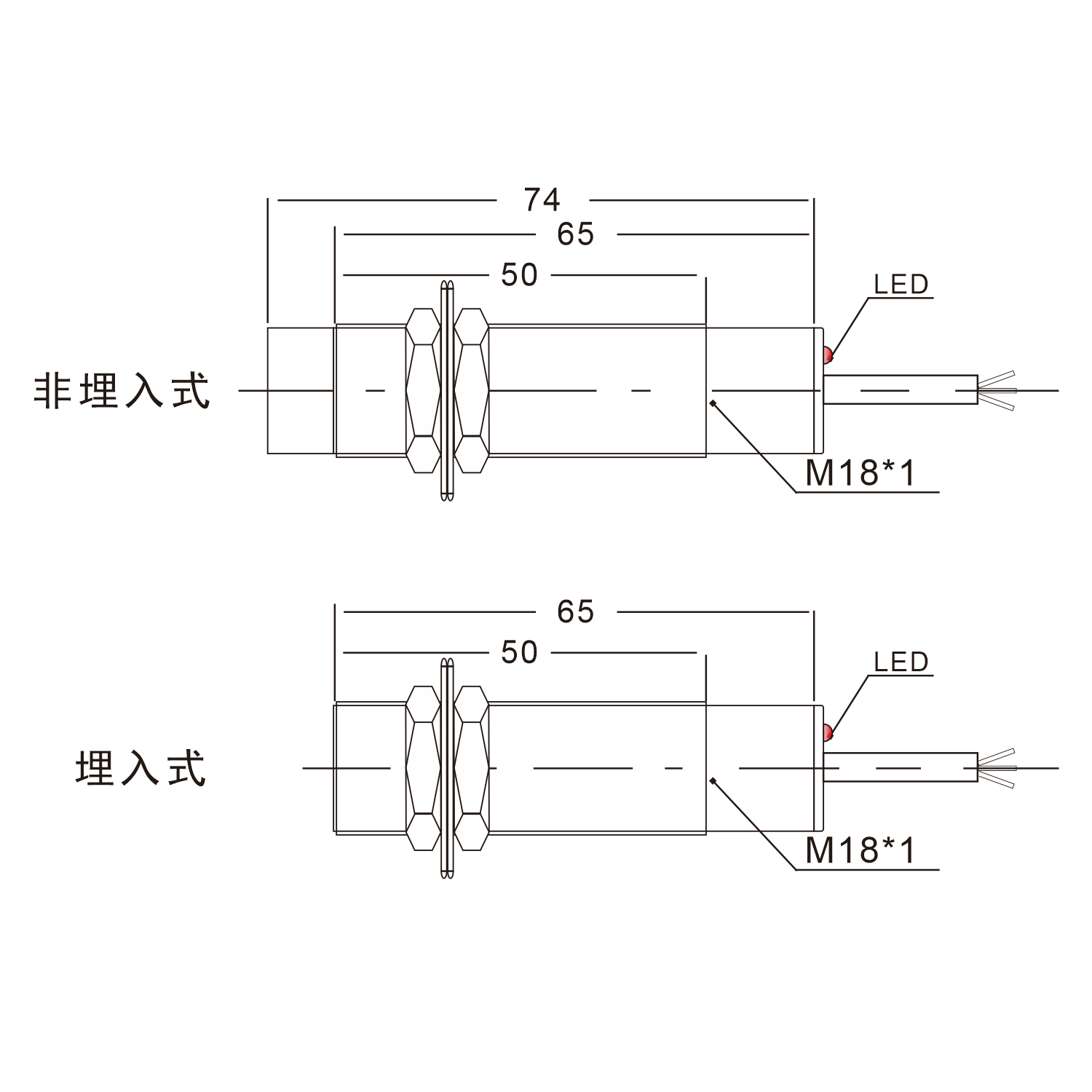

| 產品尺寸 |
Φ18*65mm |
Φ18*74mm |
